BOND7

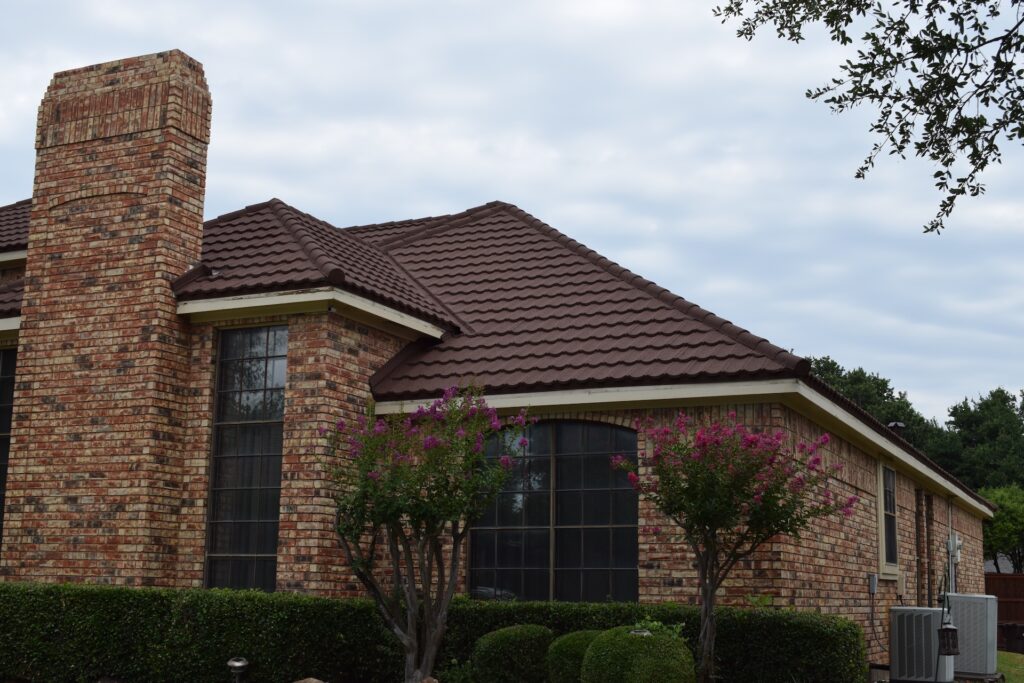

Bond provides traditional beavertail clay tile aesthetics without the concerns of heavy weight and tile breakage.

Seven pans combine in a single panel, thereby providing maximum coverage and reducing labor expense.

SPECIFICATIONS

Minimum pitch	3/12	[14°]
Maximum pitch	Vertical	[90°]
Size – overall*	52.36″x16.34″	[1330x415mm]
Size – cover*	50″x14.57″	[1270x370mm]
Gauge of steel**	26 gauge ZA	[0,45mm]
Tiles per square*	19.77 pc	[2,13 tiles/m²]
Weight per square*	131 pounds	[6,4kg/m²]
Weight per tile*	6.61 pounds	[3,0kg]

^{* The measurements may vary slightly by the finish that is added to the panel.

** Steel thickness according to the EN 10346

.}

COLORS

Color has a huge impact on the look of your house. Whether it is neutral shades, vibrant tones or subtle hues, there is something for everyone.

You can mix and match the wide color palette and profile to create something unique. With the special shades you create the perfect tones for your house.

Ask your dealer for more information regarding stock colors and leadtimes for special color and profile combinations.
